LED TV backlight strips Parameters：

LED TV backlight strips Features:

Precise Fit for Seamless Installation

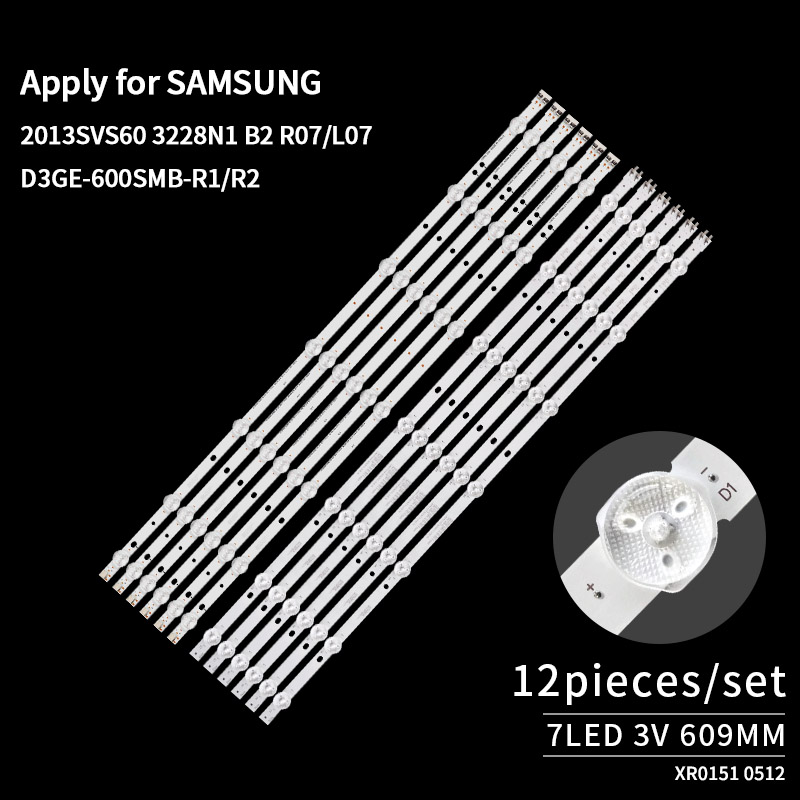

This TV light strip is custom-designed for eight 60-inch Samsung models, with a 609mm length that perfectly matches the backlight layout. The L/R directional models (L07/R07) clearly distinguish left and right sides for easy installation. The connector pins and slots match the original design 1:1, with a tolerance of ≤0.1mm. With a 12pcs/set configuration, the entire screen is covered, eliminating the issues of size discrepancies and light leakage common with universal strips. No need to repeatedly check model compatibility – just install and it’s a perfect fit.

High-Quality Even Illumination

As a core LED TV backlight strip, it features 7 LED 3228 high-color-rendering chips with a stable 3V constant-voltage drive, achieving a luminous efficiency of up to 230 lm/W. The chips are coated with dual-layer optical coatings and have a 120° wide-angle beam, combined with a light guide structure to convert point light into even surface light. With measured brightness uniformity ≥97% and color rendering accuracy ΔE ≤2.7, it effectively eliminates dark corners and light spots on the screen, restoring 4K detail and true-to-life color.

Efficient Heat Dissipation

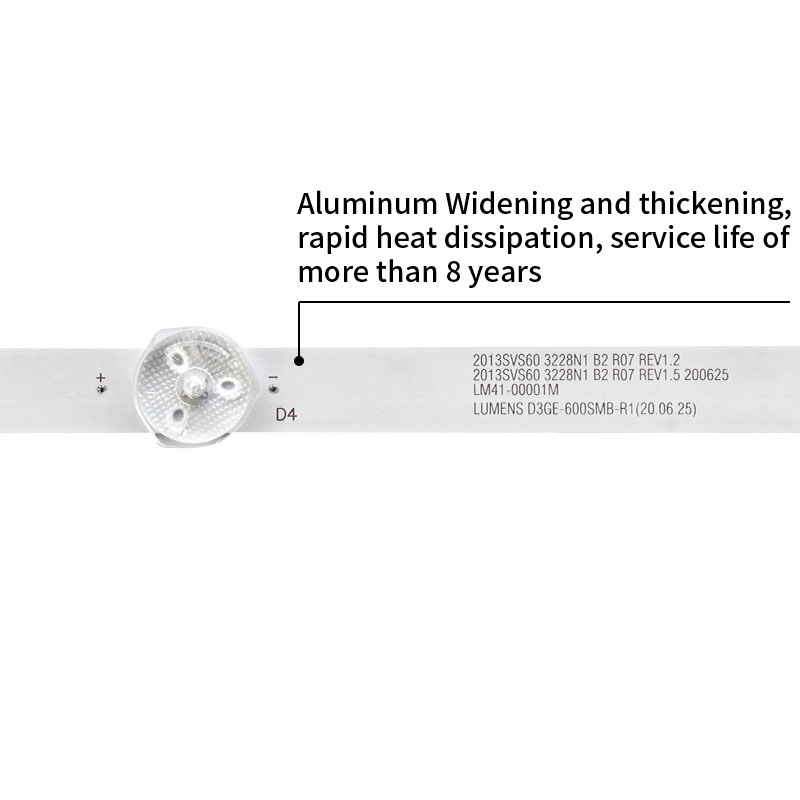

Made with a widened 1.5mm aluminum substrate, thermal conductivity is improved to 2.4W/m·K. Paired with a hollowed-out heat dissipation slot, it builds an efficient heat channel that keeps the LED junction temperature below 52°C during operation. After undergoing 72 hours of high-low temperature cycling from -20°C to 80°C, it shows a light decay rate of ≤2.8% after 10,000 hours of use, with a lifespan of over 9 years. This solves the common issue of brightness halving after three years due to heat degradation, lowering long-term replacement costs.

Durability and Stability

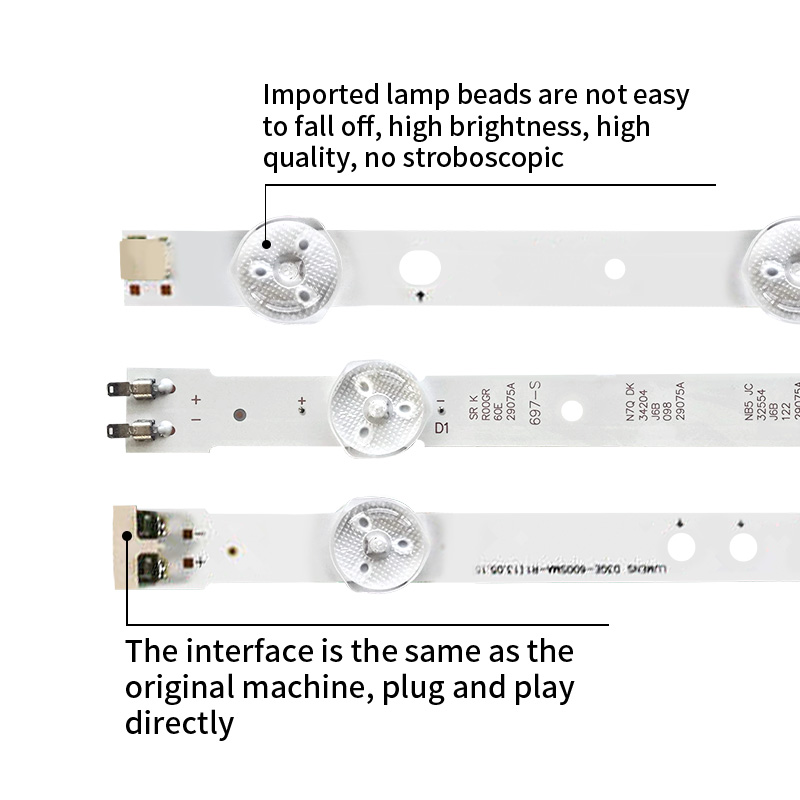

The LEDs are packaged with high-temperature, anti-adhesion technology, with a solder joint adhesion strength of 4.0N, far exceeding the industry standard of 2.5N, ensuring no risk of falling off during installation or transportation. The PCB board is coated with an insulating and moisture-resistant layer, making it suitable for use in humid environments and preventing short-circuit faults. The brightness deviation of LEDs within the same batch is ≤1.5%, ensuring even brightness across the screen without localized bright or dim spots, maintaining stable display performance.

Plug-and-Play Compatibility

The voltage and current parameters precisely replicate Samsung's original factory design, with a wavelength deviation of ≤2nm, ensuring seamless compatibility with the original backlight driver IC. No flickering or overcurrent alarm issues. The standardized interface design allows for easy replacement—just “plug in the new, unplug the old”—without the need for soldering or rewiring. Technicians can complete installation in under 10 minutes, greatly improving repair efficiency without the need for professional calibration equipment.

LED TV backlight strips Application :

LED TV Backlight strips FAQ：

Q: Do you provide warranty for your backlight strips?
A: Yes, our backlight strips usually come with a 1-year warranty. Please refer to our warranty policy for detailed information and terms.

Q: Do you provide customized backlight strips?
A: Yes, we offer customized services. Based on your TV model and special requirements, we can produce backlight strips that meet your needs.

Q: How to confirm the size and specifications of the backlight strip?
A: Please provide the specific size and specifications of your TV model or old backlight strip, and we will recommend suitable products for you based on this information.

Q: How to place an order?
A: You can place an order online through our website or directly contact our sales team for consultation and order processing. We will provide you with detailed purchasing guidance and support.

Q: How to transport the goods to me?
A: For urgent orders and lightweight, you can choose the following couriers: UPS, FedEx, TNT, DHL, EMS. For heavier weight, you can choose other ways to deliver your goods by air or by sea to save costs, etc., without worrying about the way you want to ship.

Q: Can you tell me about your factory's experience and capabilities?
A: With a decade of manufacturing expertise, we have six automatic production lines, with a daily output of more than 100,000 units. All products adopt original lamp beads, lenses, and heat-conducting aluminum base lenses, and have a group of professional technicians and production teams.
