TV LED Backlight Strip V5DN-320SM0-R4 2015SVS32 HD FCOM 5LEDS REV2.2 160925 for UE32J4000AW UE32J4505AK
- Product Information
The LED TV backlight strip is a key component in the LCD TV display system, consisting of multiple LED chips arranged on a metal substrate. The LED TV backlight strip (models V5DN-320SM0-R4, 2015SVS32 HD FCOM 5LEDS REV2.2 160925) is specifically designed for 32-inch TVs including UE32J4000AW, UE32J4505AK and other UE32J/32N/32M series models. It adopts a professional optical configuration to convert point light sources into uniform surface light through the light guide plate. This 32-inch TV backlight requires precise voltage matching (3V) and optical parameters, which directly impact brightness uniformity, color accuracy, and overall display quality. The component features a standardized interface design, ensuring perfect compatibility with the TV’s original driver circuit.

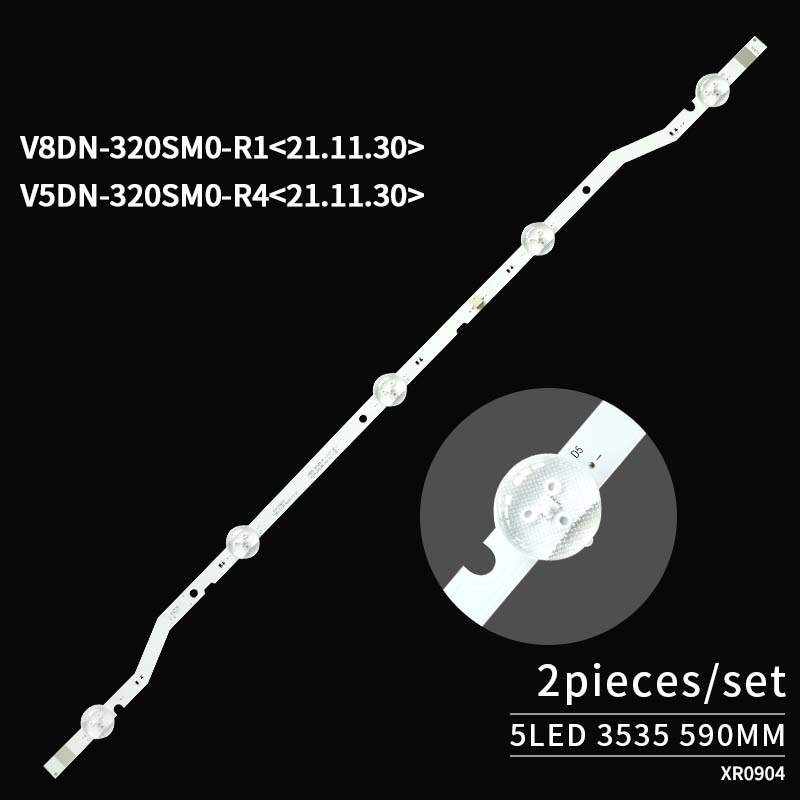

LED TV backlight strips Parameters :
| Model Number | V8DN-320SM0-R1<21.11.30> V5DN-320SM0-R4<21.11.30> |
| Compatible TV Models | UE32J4000AW, UE32J4505AK, UE32J4510AK, UE32J4515AK, UE32J4570SS, UE32J4580SS, UE32J4610AK, |
| Length | 590MM |
| Bulbs | 5LED |
| Voltage | 3V |
| Full set | 2 pcs/set |
| Material | Aluminum |
| Code | XR0904 |
LED TV backlight strips Features:
Precise Adaptation, Dual-Spec Compatibility This LED TV backlight strip (model: V5DN-320SM0-R4 series) features 5 LED chips in the 3535 specification, arranged with ±0.1mm precision. With a length of 590mm, it fits perfectly into the original structure of 32-inch televisions. It outputs a stable 3V voltage, with current fluctuations controlled within ±2%. Compatible with multiple 32-inch models such as Samsung UE32J4000AW, UE32N4000AU, and others, the interface is identical to the original, requiring no modifications during installation—just plug and play.
Optical Optimization, Uniform High Brightness Equipped with custom optical lenses, the 5 LED chips produce a color temperature of 6500K±200K (meeting the D65 white light standard). Combined with professional optical design, the brightness uniformity across the 32-inch screen exceeds 92%. This completely eliminates dark areas on the screen, providing a clear and vivid visual experience from any viewing angle, offering superior picture quality for models like HG32AE570SJ.

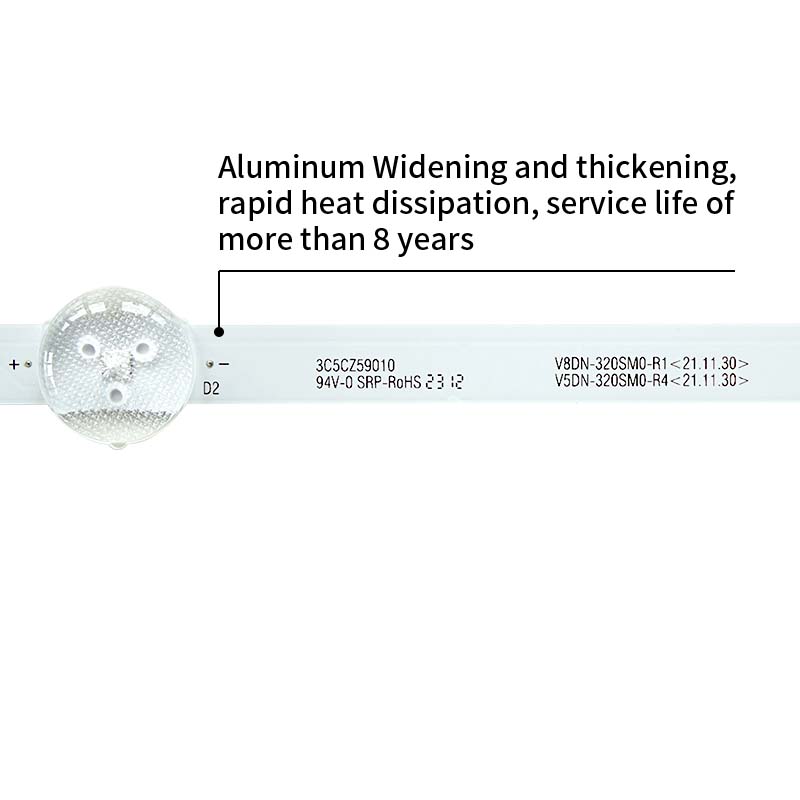

Aluminum Base for Durability, Long-lasting Stability Made with a widened and thickened aluminum base, this LED strip ensures excellent heat dissipation. The LED chips have a lifespan of over 50,000 hours, with light decay controlled to under 5%. The aluminum base is resistant to oxidation, allowing stable operation in environments ranging from -20°C to 80°C. The overall lifespan exceeds 8 years, providing long-term reliable backlight support for models like UE32N4500AU, significantly reducing future maintenance costs.
Energy-efficient, Balanced Performance Operating at 3V, each LED chip consumes a reasonable amount of power, outperforming traditional backlight solutions in energy efficiency. While meeting the high brightness demands of 32-inch displays, it strikes a balance between energy efficiency and performance, making it a practical choice for daily viewing.

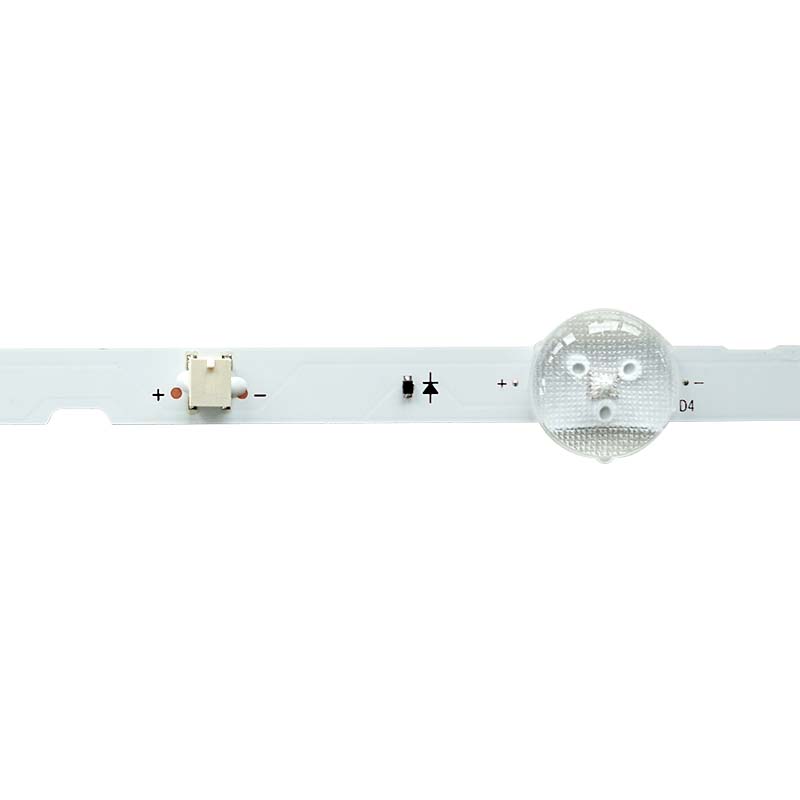

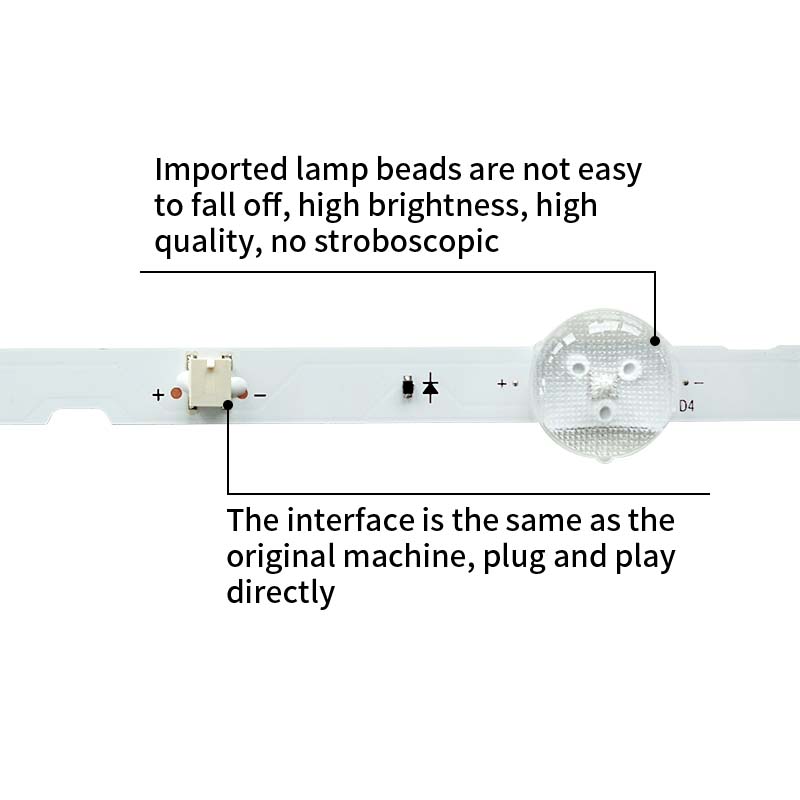

Plug-and-Play, Easy Installation The interface is fully compatible with Samsung’s 32-inch TV series (such as UE32J4510AK, HG32ND460SF), supporting plug-and-play functionality without the need for circuit modifications. The installation process is quick and efficient, and whether you're a professional technician or a DIY enthusiast, the setup is easy to complete.
Reliable Quality, Worry-Free Maintenance Using imported anti-falling LED beads, the strip ensures high brightness without flicker, offering a comfortable viewing experience. The set includes a 2 pieces/set configuration with a spare light strip for later maintenance. The product meets RoHS environmental standards and uses lead-free soldering, with quality control in place from components to production, ensuring a robust quality foundation for the TV backlight system.
LED TV backlight strips Application :
LED TV Backlight strips FAQ :
Q: What is the quality standard of the backlight strip? A: Our backlight strips go through corresponding quality inspections and meet all required standards. To date, none of our customers have reported any quality issues.
Q: What is the factory's production volume capacity? A: Our factory has a large production capacity, capable of producing over 100,000 units. Additionally, we support product customization and look forward to collaborating with you.
Q: How long does it take to get the products? A: For samples, it takes 3 - 5 days. For mass production orders, it typically takes 7 - 14 days. Since we own our factory and don't engage in secondary sales, our production volume is substantial, allowing us to offer lower prices compared to the general market.
Q: What are the shipping options for getting the goods? A: For urgent and lightweight orders, you can select from couriers like UPS, FedEx, TNT, DHL, or EMS. For heavier items, air or sea freight are cost - effective alternatives. You don't need to worry about finding the right shipping method.
Q: Which TV brands and models are compatible with the backlight strip? A: Our backlight strips are suitable for a wide variety of TV brands and models. Please share your TV's brand and model, or check our compatibility list to ensure a proper match.
Q: What are the signs indicating the need to replace the backlight strip? A: Signs such as uneven screen brightness, black screen, flickering, or color distortion suggest that the backlight strip may need replacement.
Q: Will installing a new backlight strip void the TV's warranty? A: If the TV is still under warranty, replacing the backlight strip might affect the warranty. It's advisable to check with the TV manufacturer or relevant authorized parties.
