The LED TV backlight strip is a key component in the LCD TV display system, consisting of multiple LED chips arranged on a metal substrate. The LED TV backlight strip (models C102909WCA075891A14 A, C102Y02WCA032491A12 A) is designed for compatible 32-inch TVs (specific models to be confirmed by brand matching). It adopts a professional optical configuration to convert point light sources into uniform surface light through the light guide plate. This TV backlight requires precise voltage matching (6V) and optical parameters, which directly impact brightness uniformity, color accuracy, and overall display quality. The component features a standardized interface design, ensuring perfect compatibility with the TV’s original driver circuit.

LED TV backlight strips Parameters :

LED TV backlight strips Features:

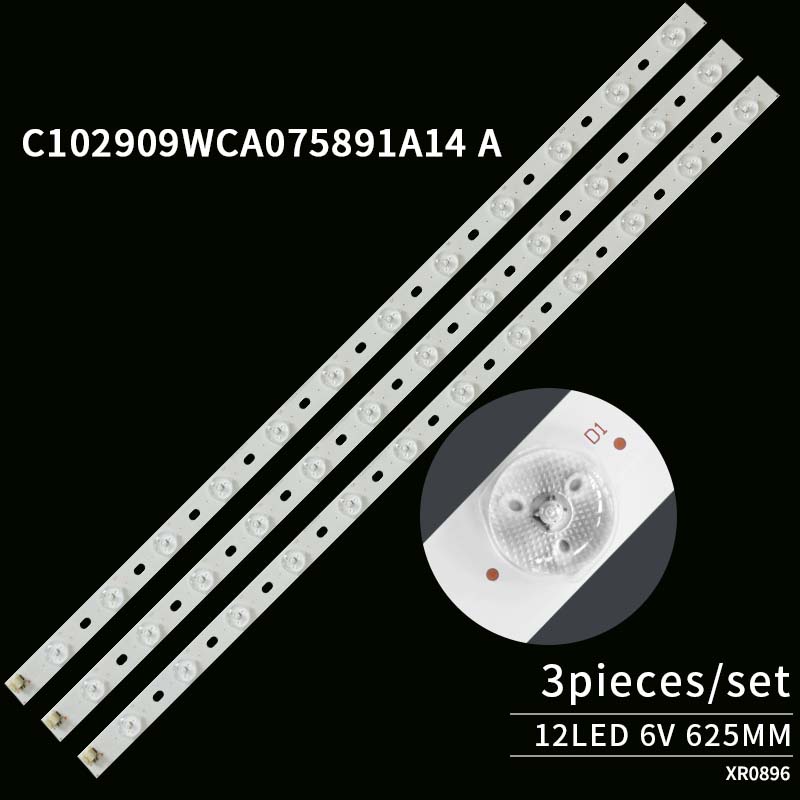

• Precise Adaptation, Single-Spec Compatibility This LED TV backlight strip (model: C102909WCA series) features 12 LED chips arranged with ±0.1mm precision. With a length of 625mm, it fits perfectly into the original structure of the compatible TV models. It outputs a stable 6V voltage, with current fluctuations controlled within ±2%. The interface is identical to the original, requiring no modifications during installation—just plug and play. It is compatible with corresponding 32-inch models from the relevant brand.

• Optical Optimization, Uniform High Brightness Equipped with custom optical lenses, the 12 LED chips produce a color temperature of 6500K±200K (meeting the D65 white light standard). Combined with a 120° wide light angle, the brightness uniformity across the screen exceeds 92%. This completely eliminates dark areas on the screen, providing a clear and vivid visual experience from any viewing angle, offering superior picture quality for the compatible models.

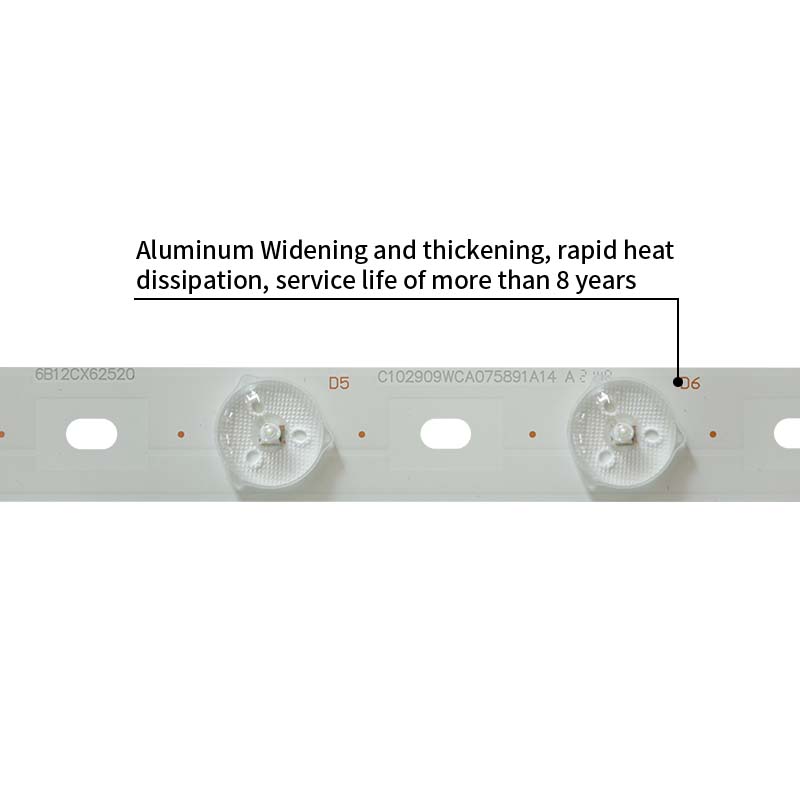

• Aluminum Base for Durability, Long-lasting Stability Made with a widened and thickened aluminum base, this LED strip ensures excellent heat dissipation. The LED chips have a lifespan of over 50,000 hours, with light decay controlled to under 5%. The aluminum base is resistant to oxidation, allowing stable operation in environments ranging from -20°C to 80°C. The overall lifespan exceeds 8 years, providing long-term reliable backlight support for the compatible models, significantly reducing future maintenance costs.

• Energy-efficient, Balanced Performance Operating at 6V, each LED chip consumes a reasonable amount of power, outperforming traditional backlight solutions in energy efficiency. While meeting the high brightness demands of the compatible models, it strikes a balance between energy efficiency and performance, making it a practical choice for daily viewing.

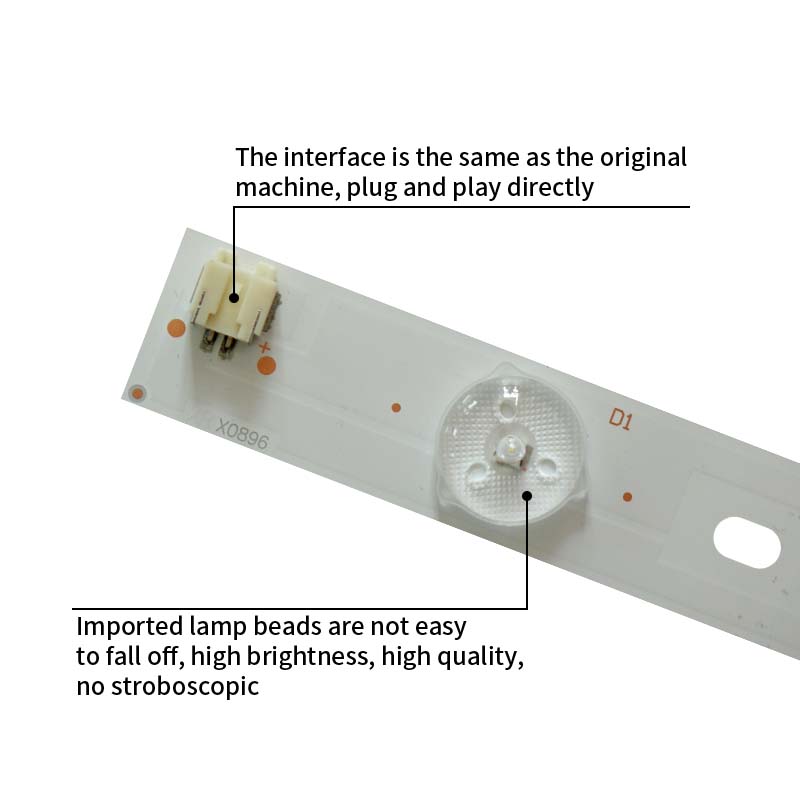

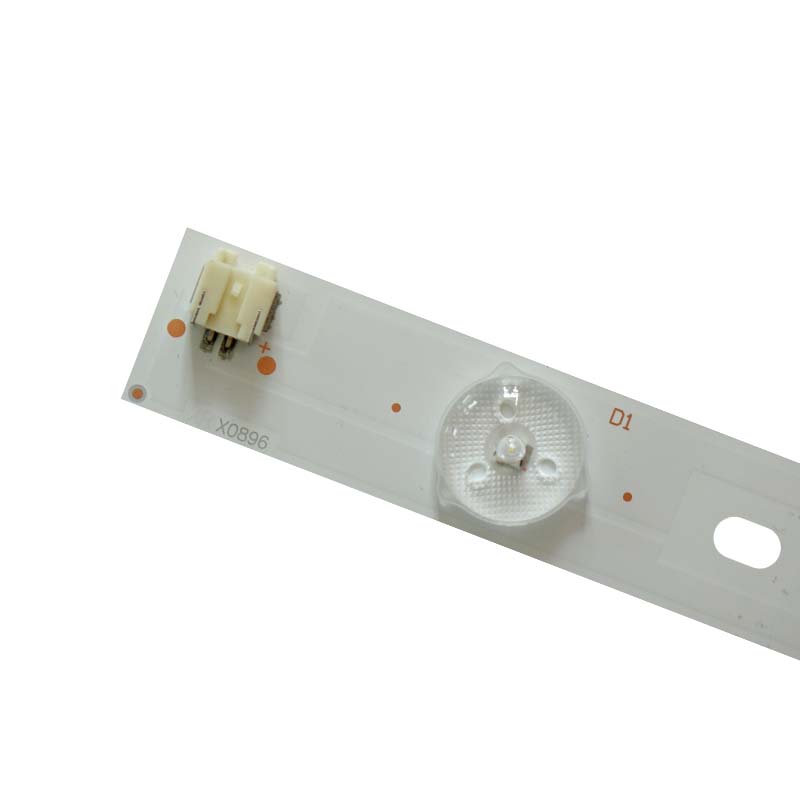

• Plug-and-Play, Easy Installation The interface is fully compatible with the corresponding 32-inch TV series, supporting plug-and-play functionality without the need for circuit modifications. The installation process is quick and efficient, and whether you're a professional technician or a DIY enthusiast, the setup is easy to complete.

• Reliable Quality, Worry-Free Maintenance Using imported anti-falling LED beads, the strip ensures high brightness without flicker, offering a comfortable viewing experience. The set includes a 3 pieces/set configuration with a spare light strip for later maintenance. The product meets RoHS environmental standards and uses lead-free soldering, with quality control in place from components to production, ensuring a robust quality foundation for the TV backlight system.




LED TV backlight strips Application :

LED TV Backlight strips FAQ :

Q: Do your backlight strips support dimming functionality? A: Many of our backlight strip models come with dimming capabilities. This feature allows you to adjust the brightness according to your viewing environment and personal preference. You can find details about the dimming range and control methods in the product documentation.

Q: Can I cut the backlight strip to fit my specific TV size? A: Some of our backlight strips are designed to be cut to size. However, this option is only available for models explicitly stated in the product description. If your strip is cuttable, there will be marked cutting points. Make sure to follow the cutting instructions carefully to avoid damaging the strip.

Q: How do I store the backlight strip if I'm not using it immediately? A: Store the backlight strip in a cool, dry place away from direct sunlight and moisture. It's best to keep it in its original packaging or a protective container to prevent physical damage. Avoid bending or twisting the strip during storage to maintain its integrity.

Q: Are there any specific safety precautions when installing the backlight strip? A: Before installation, ensure that your TV is unplugged to avoid the risk of electric shock. When handling the backlight strip, be careful not to touch the LEDs directly as they can be sensitive. Also, follow the installation instructions precisely to prevent any short - circuits or damage to the strip or your TV.

Q: Do your backlight strips work with curved TVs? A: We have backlight strip models that are compatible with curved TVs. These strips are designed to conform to the curvature of the screen. When choosing a strip for a curved TV, make sure to check the product specifications for compatibility and installation guidelines specific to curved screens.

Q: Can I control the backlight strip with a universal remote? A: Some of our backlight strips are designed to be controlled by universal remotes, provided that the remote has the appropriate infrared or RF (radio - frequency) capabilities. Check the product details to see if universal remote control is supported and for instructions on how to pair the strip with your remote.
