LED TV Backlight Strips LED40D07-ZC22AG-01 7S1P for H40E10 LE40A6R9 LE40F31G LE40U5000TF
- Product Information
All the backlight strips for our televisions are produced by professional staff in the factory, including this model LED40D07-ZC22AG-01 7S1P which is applicable to H40E10, LE40A6R9, LE40F31G, LE40U5000TF, LE40AL88G31C, LE40AL88F51, and LE40AL88U88. We focus on the research and manufacturing of high-performance LED backlight strips for televisions, providing stable and reliable backlight solutions for global TV brands and OEM/ODM manufacturers. The products use selected high-quality LED chips and driver ICs to ensure high brightness, high uniformity, long lifespan and excellent color performance. We have a strict quality control system, compatible with mainstream brand panel models, and offer customized services. We are your reliable partner. Choose us to inject brilliance into your TV products.
LED TV Backlight strips Parameters：

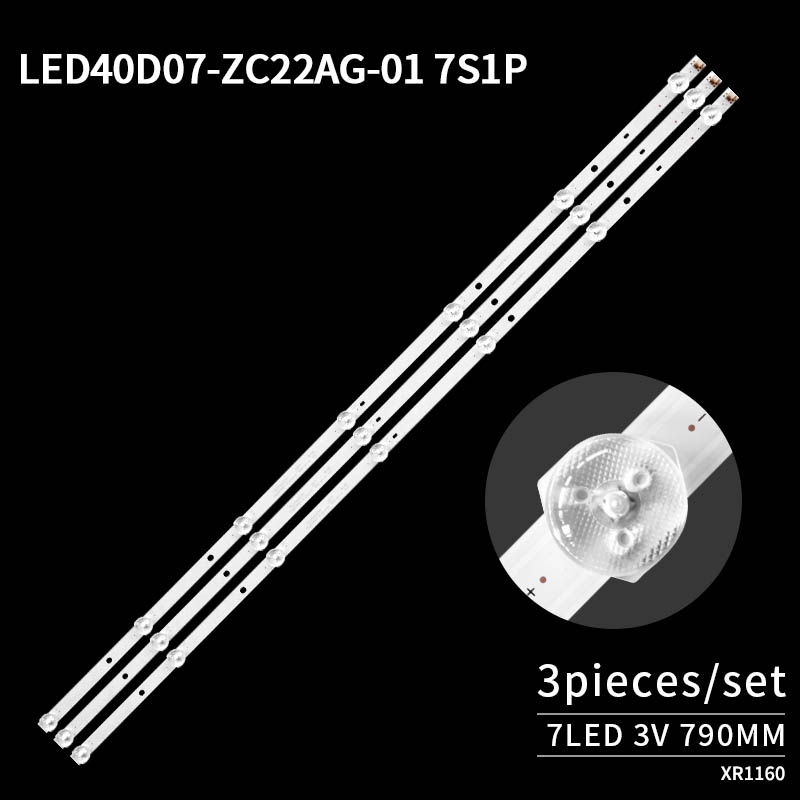

| Model number: | LED40D07-ZC22AG-01 7S1P |
| TV inches: | H40E10 LE40A6R9 LE40F31G LE40U5000TF LE40AL88G31C LE40AL88F51 LE40AL88U88 |
| Length: | 790MM |
| Bulbs: | 7 LED |
| Voltage: | 3V |
| Full set: | 3 pcs/set |

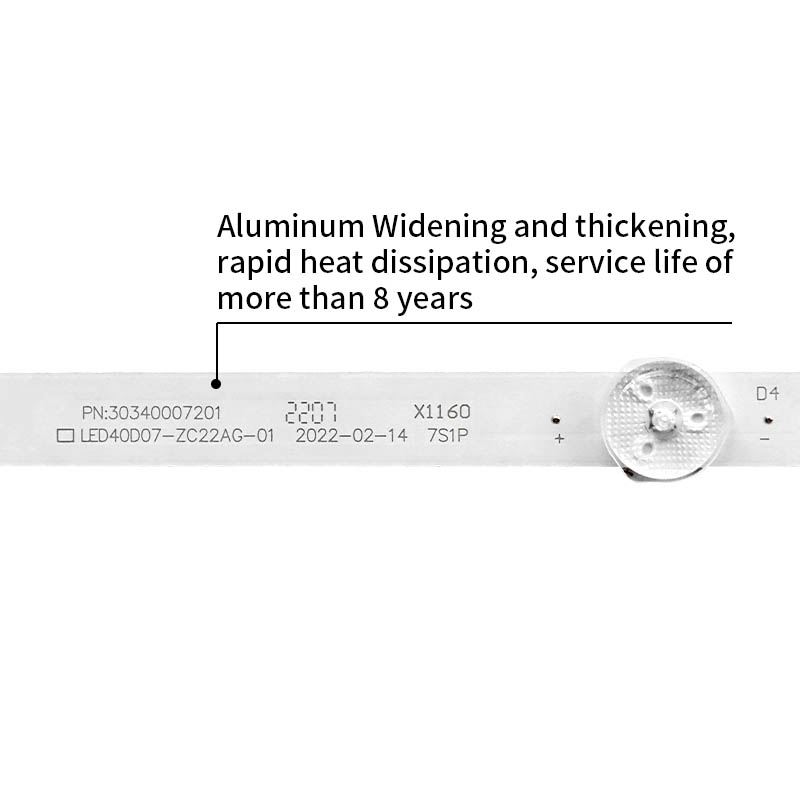

| Material: | Aluminum |
| Brightness: | 400 ~ 600 nits |
| Lifespan (hours)： | 50,000 ~ 60,000 |
| Lens: | Original from Korea/Made in China |
| Code: | XR1160 |
LED TV Backlight strips Features：
1. Superior Optical Performance
High Luminance & Uniformity: Utilizes premium LED chips with precision optical design to ensure consistent brightness and eliminate dark zones or yellow spots.
Wide Color Gamut: Supports up to 92% DCI-P3 coverage, delivering vibrant and accurate colors for stunning HDR visuals.
High CRI (＞90): Ensures realistic color reproduction, enhancing overall picture quality for 4K/8K displays.
2. Enhanced Reliability & Longevity
Advanced Thermal Management: Designed with high-thermal-conductivity PCBs (e.g., FR-4) and copper-based heat dissipation to minimize light decay and extend lifespan (50,000+ hours).
Rigorous Testing: Each strip undergoes aging tests, high-temperature/high-humidity tests, and thermal shock tests to ensure durability in harsh environments.
Low Failure Rate: Strict quality control (IQC & 100% aging screening) reduces early failure rates to ＜50 DPPM.
3. Customization & Compatibility
Broad Compatibility: Compatible with major panel brands (Samsung, LG, BOE, CSOT, etc.), supporting plug-and-play replacement for streamlined production and repairs.
OEM/ODM Support: Fully customizable options for size, brightness, color temperature, LED count, and connector types to meet specific design requirements.
LED TV Backlight strips FAQ：
Q: Do you provide customized backlight strips?
A: Yes, we offer customized services. Based on your TV model and special requirements, we can produce backlight strips that meet your needs.
Q: How to place an order?
A: You can place an order online through our website or directly contact our sales team for consultation and order processing. We will provide you with detailed purchasing guidance and support.
Q: What about the lead time?
A:Samples take 3-5 days, and mass production takes 7-14 days—with factory-direct pricing lower than market rates due to our large-scale production and no middlemen to carry out secondary sales.
Q: How about the quality of the backlight strip?
A: Our quality has the corresponding quality inspection, the requirements are qualified, and there has been no quality problem among the customers who have served so far.
Q: How about the factory output?
A: Our products are very huge, can reached more than 100,000, and support customization, look forward to cooperating with you.
Q: How to transport the goods to me?
A:For urgent orders and lightweight, you can choose the following couriers: UPS, FedEx, TNT, DHL, EMS. For heavier weight, you can choose other ways to delivery your goods by air or by sea to save costs, etc.,without worrying about the way you want to ship.
