LED Backlight Strip Lm41-00121x Lm41-00144a - Compatible with Ue40j5200/5000au
- Product Information
The LED TV backlight strip is a key component in the LCD TV display system, consisting of multiple LED chips arranged on a metal substrate. The LED TV backlight strip (models LM41-00121X, LM41-00144A) is specifically designed for 40-inch TVs including UE40J5200AU, UE40J5000AU and other UE40J5200/5000 series models. It adopts a professional optical configuration to convert point light sources into uniform surface light through the light guide plate. This 40-inch TV backlight requires precise voltage matching and optical parameters, which directly impact brightness uniformity, color accuracy, and overall display quality. The component features a standardized interface design, ensuring perfect compatibility with the TV’s original driver circuit.
LED TV backlight strips Parameters :

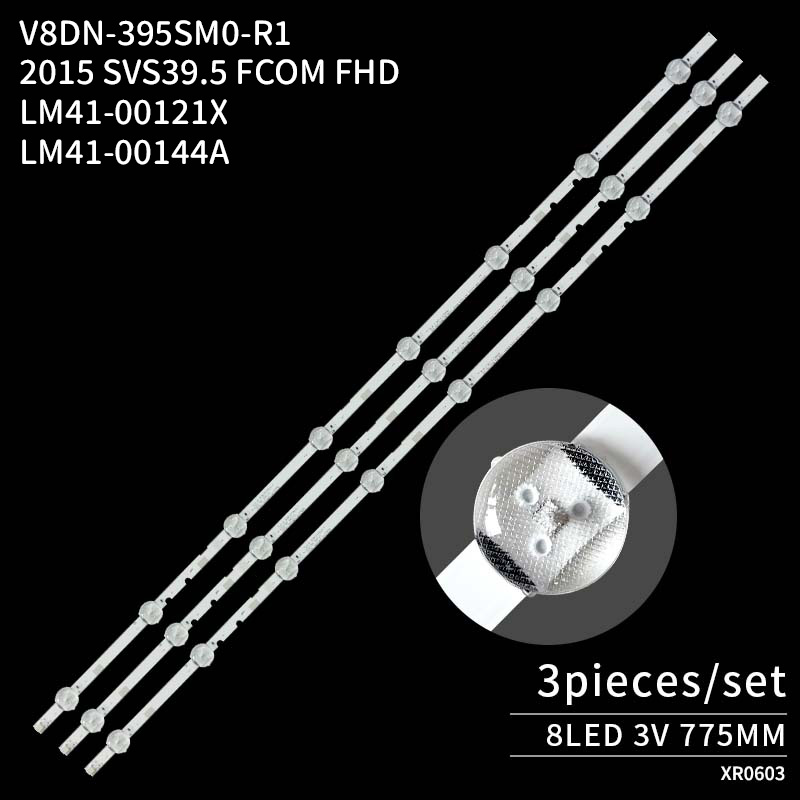

| Model Number | 2015 SVS39.5 FCOM FHD、LM41-00121X、LM41-00144A、V8DN-395SMO-R1 |
| Compatible TV Models | UE40J5200AU、UE40J5200AF、UE40J5000AU、UE40J5000AW、UE40J5000AK |
| Length | 775MM |
| Bulbs | 8LED |
| Voltage | 3V |
| Full set | 3 pcs/set |
| Material | Aluminum |
| Code | XR0603 |
Product Features :
Precision
This LED TV backlight strip (models: 2015 SVS39.5 FCOM FHD、LM41-00121X, etc.) features 8 high-quality LED chips arranged with ±0.1mm accuracy. The 775mm precise length matches the original structure of UE40J series TVs (UE40J5200AU, UE40J5000AU, etc.) perfectly, ensuring no modifications are required during installation. The 3V operating voltage provides stable output, with current fluctuations under ±2%, ensuring long-term stability.
Brightness
The 8 LED chips adopt high-efficiency technology, each providing 12 lumens, with the total brightness of the strip exceeding 96 lumens. The color temperature is stable at 6500K ±200K, meeting the D65 standard for white light. The 120° light angle, combined with professional optical design, achieves over 90% brightness uniformity, fully satisfying the display needs of 40-inch TVs.
Durability

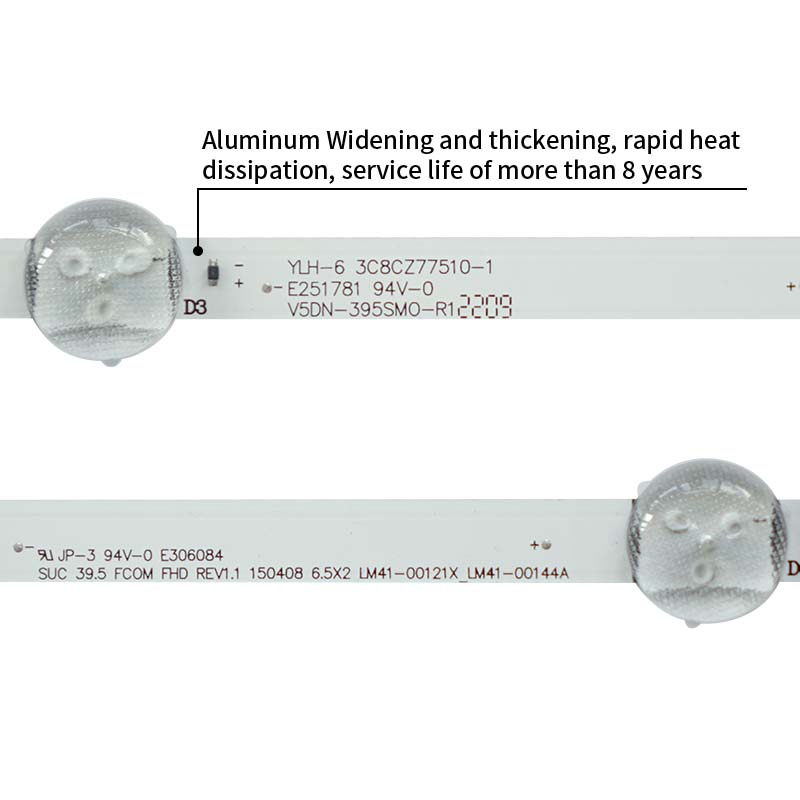

The strip uses a widened and thickened aluminum substrate (1.2mm thickness) with excellent heat dissipation, featuring a thermal conductivity of 180W/m·K. The LED chips have a lifespan of over 50,000 hours, with light decay controlled to within 5%. The aluminum substrate is treated to be oxidation-resistant, with an operating temperature range of -20°C to 80°C, suitable for various home or commercial environments.
Energy Efficiency
The operating voltage is only 3V, with each LED consuming less than 1.2W, and the total power of the strip is under 9.6W. This results in more than 40% energy savings compared to traditional CCFL backlights, while providing superior brightness and color performance—balancing power efficiency and display quality for daily use.
Compatibility

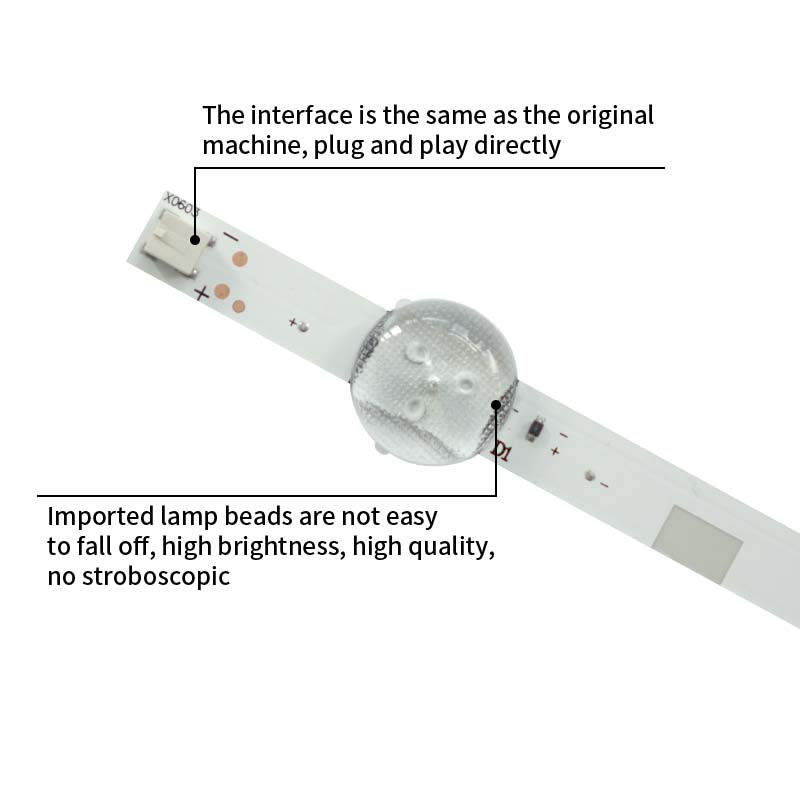

Designed specifically for Samsung UE40J series TVs, it is fully compatible with models such as UE40J5200AU, UE40J5200AF, UE40J5000AU, UE40J5000AW, and UE40J5000AK. The electrical interface follows the original standard, supporting plug-and-play installation without the need for circuit modifications or additional adapters.
Stability
The voltage range of 2.8V-3.2V allows stable lighting even during slight voltage fluctuations in the power supply. The constant current drive design ensures consistent brightness for all 8 LEDs, with brightness variations of less than 3%. Performance remains stable after 2000 hours of high-temperature (80°C) and high-humidity (90% RH) testing, avoiding issues like flicker or brightness decay.
Quality
Each LED TV backlight strip undergoes 72-hour continuous aging tests, with a pass rate of 99.9% to eliminate defective products. It adopts lead-free soldering technology and meets RoHS environmental protection standards, complying with global eco-friendly requirements. The 3 pieces/set configuration provides backup parts for future maintenance, reducing the hassle of re-purchasing.
LED TV backlight strips Application：
LED TV Backlight strips FAQ ：
Q: How long does the backlight strip last? A: The backlight strip lasts up to 50,000 hours, ensuring long-term durability and stable performance.
Q: Are there any special maintenance requirements for the backlight strip? A: The backlight strip is relatively low - maintenance. Simply keep it clean by gently dusting it with a soft, dry cloth. Avoid using abrasive cleaners or exposing it to excessive moisture, as this could potentially damage the strip. Also, ensure that the power supply connections remain secure over time.
Q: Will this work with my LG TV? A: This backlight strip is compatible with various 32-inch LG TV models, including the 32LN5700. Please check your TV model for full compatibility.
Q: Does the backlight strip come with any additional accessories? A:Along with the backlight strip, you will receive all the necessary connection cables for a hassle - free installation. These cables are designed to fit seamlessly with the plug - and - play interface of the strip and your LG TV. Additionally, a basic user manual is included to guide you through the installation process.
Q: What if I receive a defective backlight strip?A: If you receive a defective backlight strip, please contact our customer service immediately. We offer a replacement or refund service to ensure your satisfaction. Our team will respond within 24 hours to resolve the issue.
Q: Can I order a custom - sized backlight strip?
A: Currently, we mainly offer standard - sized backlight strips for 32 - inch LG TVs. However, if you have a special requirement for a custom - sized strip, you can reach out to our sales department. We will assess the feasibility and provide you with a quote and lead - time for the customized product.
