StarSharp specializes in TV backlight strip production, development and sales. For models JS-D-JP5020-A51EC(60714) & JS-D-JP5020-B51EC(60714), it fits PHILIPS D50-F2000/LD-50SF6015B TVs.
  • Product Information

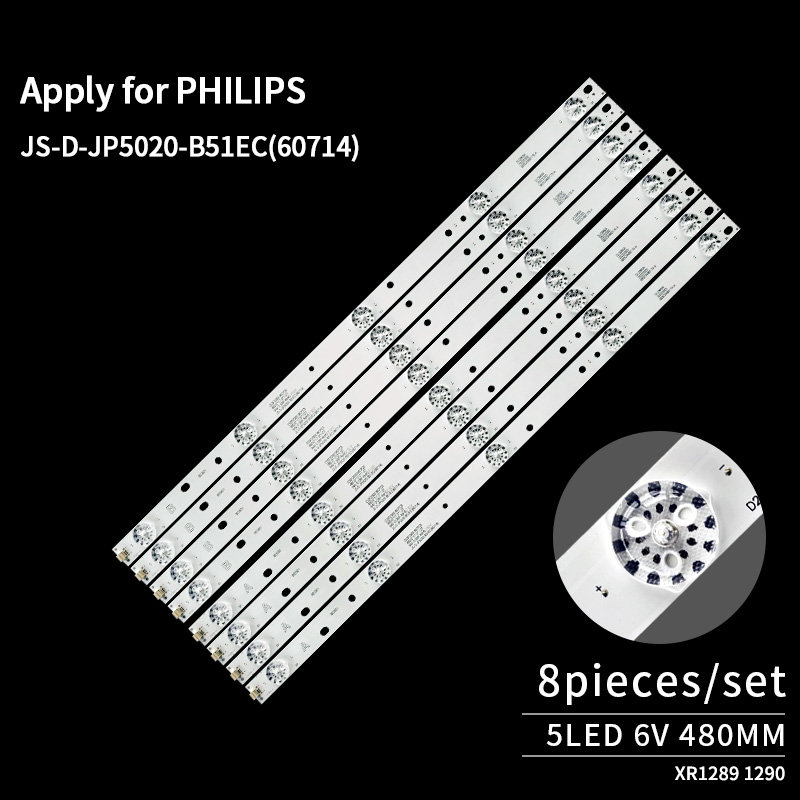

StarSharp specializes in TV backlight strip production, development and sales. For models JS-D-JP5020-A51EC(60714) & JS-D-JP5020-B51EC(60714), it fits PHILIPS D50-F2000/LD-50SF6015B TVs. As a core LCD display component, it has 5 imported LED beads per strip (8 strips/set) on thickened aluminum MCPCB. It uses professional optics to turn point light into uniform surface light; 6V voltage ensures brightness/color performance. Its original-matching interface enables plug-and-play compatibility with the TV’s driver circuit.

6B5CX48017A


LED TV backlight strips Parameters



Model NumberJS-D-JP5020-A51EC(60714)JS-D-JP5020-B51EC(60714)
TV ModelsPHILIPS D50-F2000, LD-50SF6015B
Length480MM
Bulbs5 LED
Voltage6V
Full set8 pcs/set
MaterialAluminum
CodeXR1289 1290



LED TV backlight strips Features:

1. Stable, Eye-Friendly Illumination

This tv light strips solves dim/flickering displays with imported lamp beads (stroboscopic-free, flicker frequency<1hz, meeting="" iec="" eye-protection="" standards="">

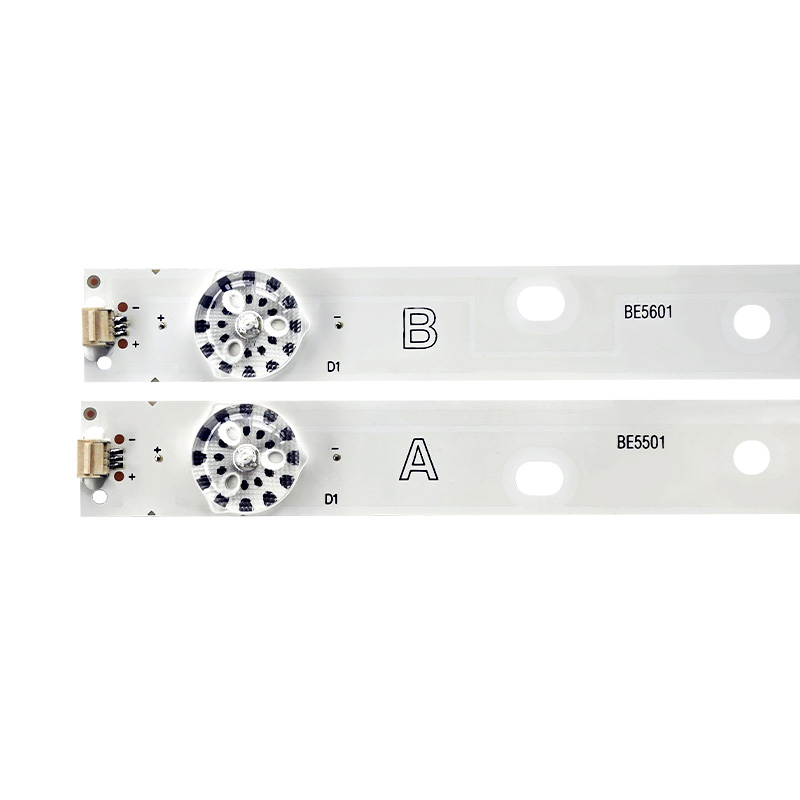

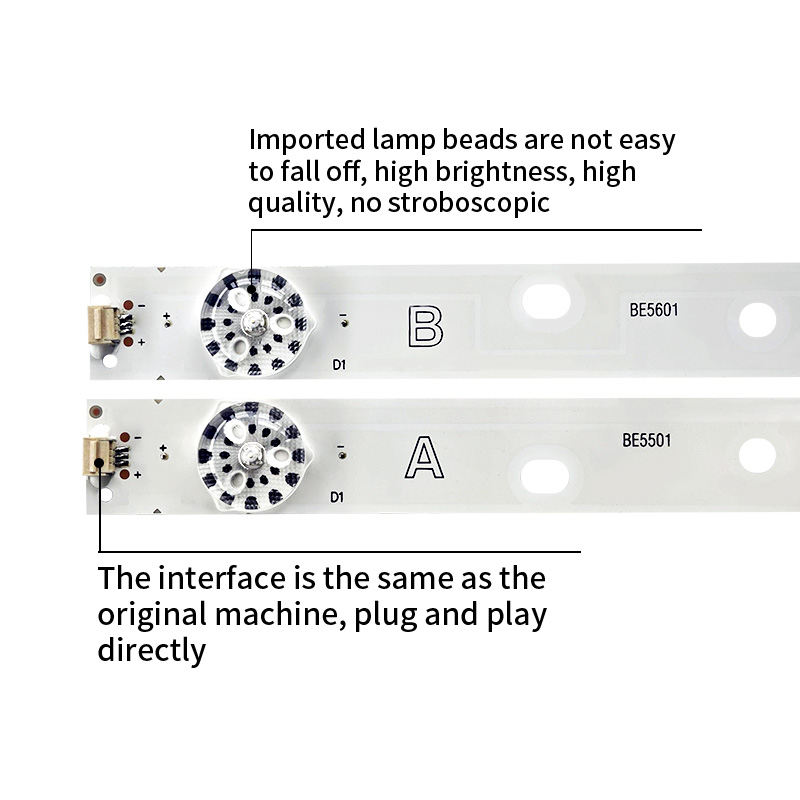

2. Hassle-Free Plug-and-Play Compatibility

Targeting interface mismatch issues, this TV backlight strip uses an original-machine identical interface (contact resistance<5mω, complying="" with="" gb="">

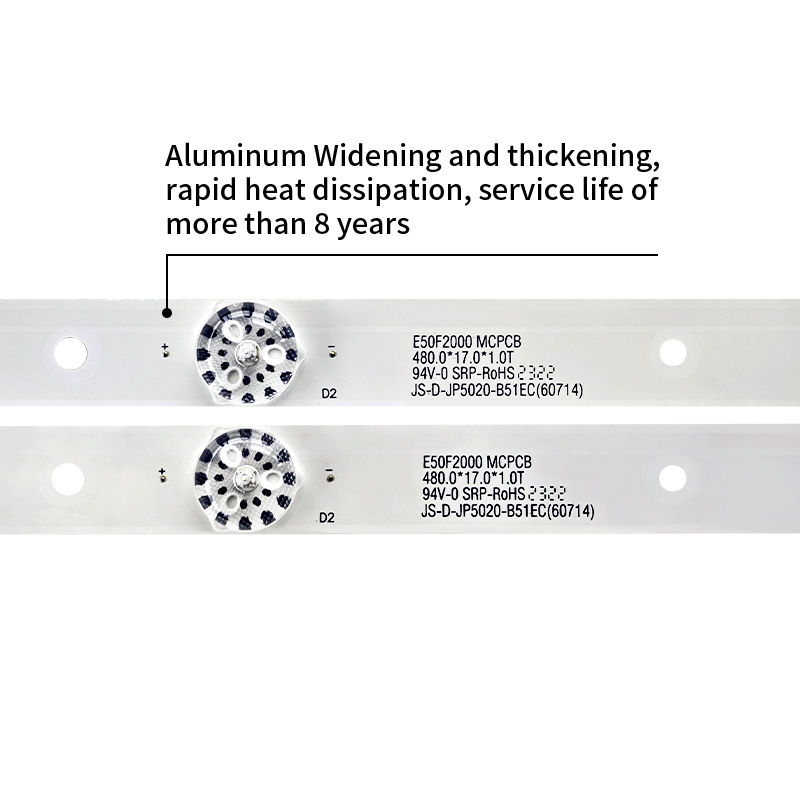

3. 8+ Year Long Lifespan

To fix short service life from overheating, the strip adopts a widened & thickened aluminum MCPCB (thermal conductivity ≥200W/m·K, meeting EN 12830 thermal standards). It keeps LED chip temperature<60℃, reducing="" component="" aging="" speed.="" this="" extends="" the="" strip="">

4. Uniform Screen Brightness

Addressing dark spots/light leakage, the strip uses professional optical configuration (lens transmittance ≥92%, complying with ISO 13696 standards). It converts point light into uniform surface light, achieving ≥90% brightness uniformity (vs 85% industry average). This ensures consistent, clear visuals across the entire screen—fixing the pain point of uneven illumination in low-quality TV backlight strips.

5. Durable Structural Stability

For loose lamp beads, the strip uses high-strength solder paste bonding (solder joint shear strength ≥5N, meeting IPC-JSTD-001 standards). The reinforced aluminum MCPCB (tensile strength ≥150MPa) passes 10G vibration tests (MIL-STD-810G), resisting impact and vibration. This prevents bead detachment, ensuring long-term, trouble-free operation of the tv light strips—solving the risk of sudden display failure.



LED TV backlight strips Application :

application shows



LED TV Backlight strips FAQ


Q: How to place an order? A: You can place an order online through our website or directly contact our sales team for consultation and order processing. We will provide you with detailed purchasing guidance and support.

Q: How to transport the goods to me? A: For urgent orders and lightweight items, you can choose the following couriers: UPS, FedEx, TNT, DHL, EMS. For heavier items, you can choose other ways to deliver your goods by air or by sea to save costs. You can trust us to handle the shipping method based on your preference.

Q: Do you provide customized backlight strips? A: Yes, we offer customized services. Based on your TV model and special requirements, we can produce backlight strips that meet your needs.

Q: Do you provide warranty for your backlight strips? A: Yes, our backlight strips usually come with a 1-year warranty. Please refer to our warranty policy for detailed information and terms.

Q: How to confirm the size and specifications of the backlight strip? A: Please provide the specific size and specifications of your TV model or old backlight strip, and we will recommend suitable products for you based on this information.

Q: Can you tell me about your factory's experience and capabilities? A: With a decade of manufacturing expertise, we have six automatic production lines, with a daily output of more than 100,000 units. All products adopt original lamp beads, lenses, and heat-conducting aluminum base lenses, and have a group of professional technicians and production teams.
