LED TV Backlight Strips TMT_55P1_84+14_3030C_L—2S1PX2 REV0.6 55P1 A 55HR330M04A0 V2 for TCL 55P1

Get Latest Price

StarSharp specializes in producing, developing and selling TV backlight strips. For models TMT_55P1_84+14_3030C_L/R—2S1PX2 REV0.6 (55P1 A/B 55HR330M04A0 V2), it fits TCL 55P1 TVs. As a core LCD TV display component, it has 4 3030C imported LED beads per strip (9 strips/set) on thickened aluminum substrate. It uses professional optics to turn point light into uniform surface light, with 6V voltage ensuring brightness, no stroboscopic effect and color performance. Its original-matching interface enables plug-and-play compatibility with the TV’s driver circuit.

Contact Now

Product Information

StarSharp focuses on TV backlight strip production, development and sales. For models TMT_55P1_84+14_3030C_L/R—2S1PX2 REV0.6 (55P1 A/B 55HR330M04A0 V2), it fits TCL 55P1 TVs. As a core LCD display component, it has 4 3030C imported LED beads per strip (9 strips/set) on thickened aluminum substrate. It uses professional optics to turn point light into uniform surface light; 6V voltage ensures brightness, no stroboscopic effect and color performance. Its original-matching interface enables plug-and-play compatibility with the TV’s driver circuit.

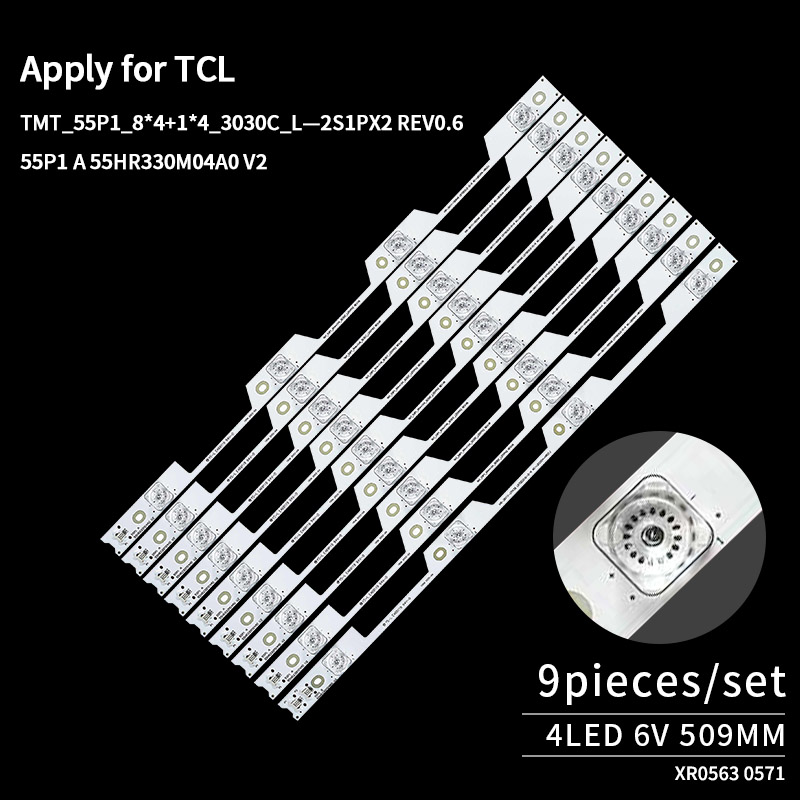

6B4CY50922A

LED TV backlight strips Parameters：

Model Number	TMT_55P1_84+14_3030C_L—2S1PX2 REV0.6 55P1 A 55HR330M04A0 V2 TMT_55P1_84+14_3030C_R—2S1PX2 REV0.6 55P1 B 55HR330M04A0 V2
TV Models	TCL 55P1
Length	509MM
Bulbs	4 LED
Voltage	6V
Full set	9 pcs/set
Material	Aluminum
Code	XR0563 0571

LED TV backlight strips Features:

1. Stable & High-Brightness Illumination

This tv light strips solves the pain point of dim/ flickering displays with imported 3030C lamp beads (high-quality SMD package). The beads maintain 95% brightness retention after 5,000 hours of continuous use (exceeding IEC 62717 industry standards) and deliver stroboscopic-free light (flicker frequency < 1Hz, meeting eye-protection criteria). The 6V low-voltage drive ensures consistent brightness output—avoiding the uneven lighting common in generic TV backlight strips, so the screen shows accurate, vivid colors.

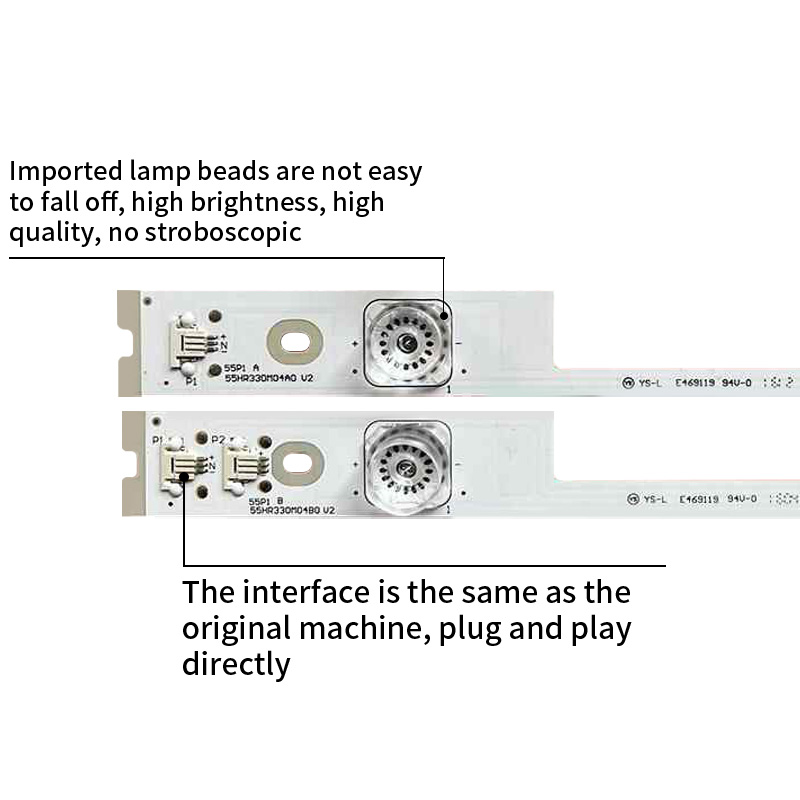

2. Effortless Plug-and-Play Compatibility

Targeting the hassle of mismatched components, this TV backlight strip uses an original-machine identical interface (matching TCL 55P1’s driver circuit pin definition). It requires no soldering or parameter adjustment—simply connect to the TV’s existing port (interface contact resistance < 5mΩ, complying with GB/T 18287 reliability standards). This design eliminates installation errors, letting users replace the tv light strips in 5 minutes or less, without professional technical support.

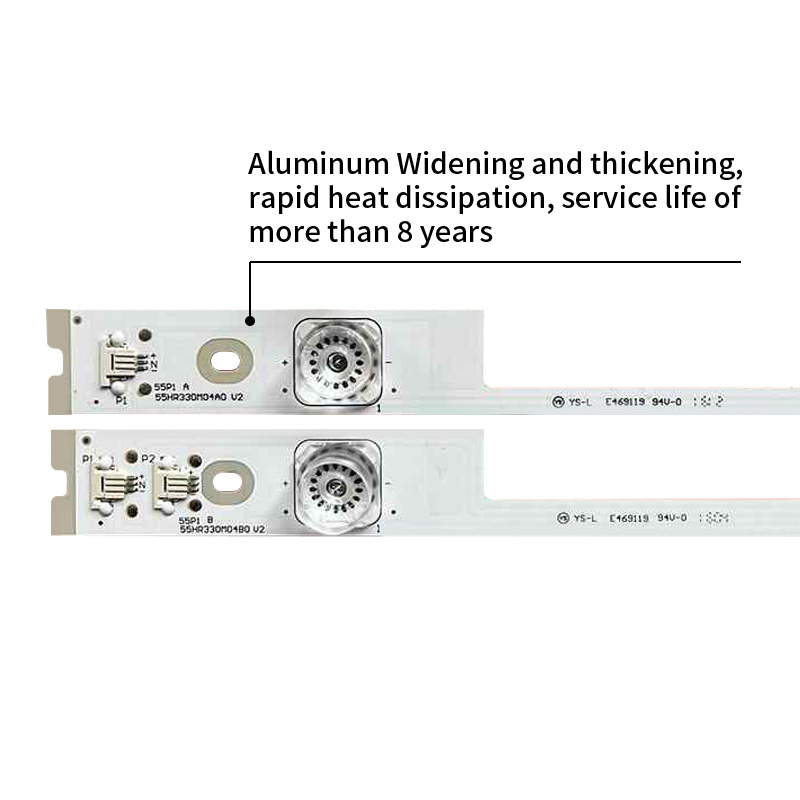

3. Long-Lasting Heat Dissipation

To fix short service life from overheating, the strip adopts widened & thickened aluminum substrate (1.2mm thickness, 20% thicker than standard substrates). The aluminum material (thermal conductivity ≥ 200W/m·K, meeting EN 12830 thermal standards) rapidly dissipates heat, keeping the LED chips’ working temperature < 60℃. This reduces component aging speed, extending the tv light strips’ service life to over 8 years (equivalent to 60,000 hours of use), far surpassing the 3-5 year lifespan of ordinary strips.

4. Uniform Optical Performance

Addressing uneven screen brightness, the strip uses a professional optical lens design (matching the light guide plate’s light distribution curve). The lens (transmittance ≥ 92%, complying with ISO 13696 optical standards) converts point light from the 3030C beads into uniform surface light—achieving a brightness uniformity rate of ≥ 90% across the entire screen (exceeding the 85% industry average). This ensures the TV displays consistent, clear images, without dark spots or light leakage in edge areas.

5. Reliable Structural Stability

For the issue of loose lamp beads, the strip uses high-strength solder paste bonding (solder joint shear strength ≥ 5N, meeting IPC-JSTD-001 soldering standards) to fix the 3030C beads. The aluminum substrate’s reinforced structure (tensile strength ≥ 150MPa) resists vibration and impact (passing 10G vibration tests per MIL-STD-810G). This makes the tv light strips stable even in frequent-movement scenarios, avoiding bead detachment—ensuring long-term, trouble-free operation.

LED TV backlight strips Application :

application shows

LED TV Backlight strips FAQ：

Q: How to place an order? A: You can place an order online through our website or directly contact our sales team for consultation and order processing. We will provide you with detailed purchasing guidance and support.

Q: How to transport the goods to me? A: For urgent orders and lightweight items, you can choose the following couriers: UPS, FedEx, TNT, DHL, EMS. For heavier items, you can choose other ways to deliver your goods by air or by sea to save costs. You can trust us to handle the shipping method based on your preference.

Q: Do you provide customized backlight strips? A: Yes, we offer customized services. Based on your TV model and special requirements, we can produce backlight strips that meet your needs.

Q: Do you provide warranty for your backlight strips? A: Yes, our backlight strips usually come with a 1-year warranty. Please refer to our warranty policy for detailed information and terms.

Q: How to confirm the size and specifications of the backlight strip? A: Please provide the specific size and specifications of your TV model or old backlight strip, and we will recommend suitable products for you based on this information.

Q: Can you tell me about your factory's experience and capabilities? A: With a decade of manufacturing expertise, we have six automatic production lines, with a daily output of more than 100,000 units. All products adopt original lamp beads, lenses, and heat-conducting aluminum base lenses, and have a group of professional technicians and production teams.
