LED TV Backlight Strips LED55D16-ZC14-01(B) for Haier MHTV5511
- Product Information

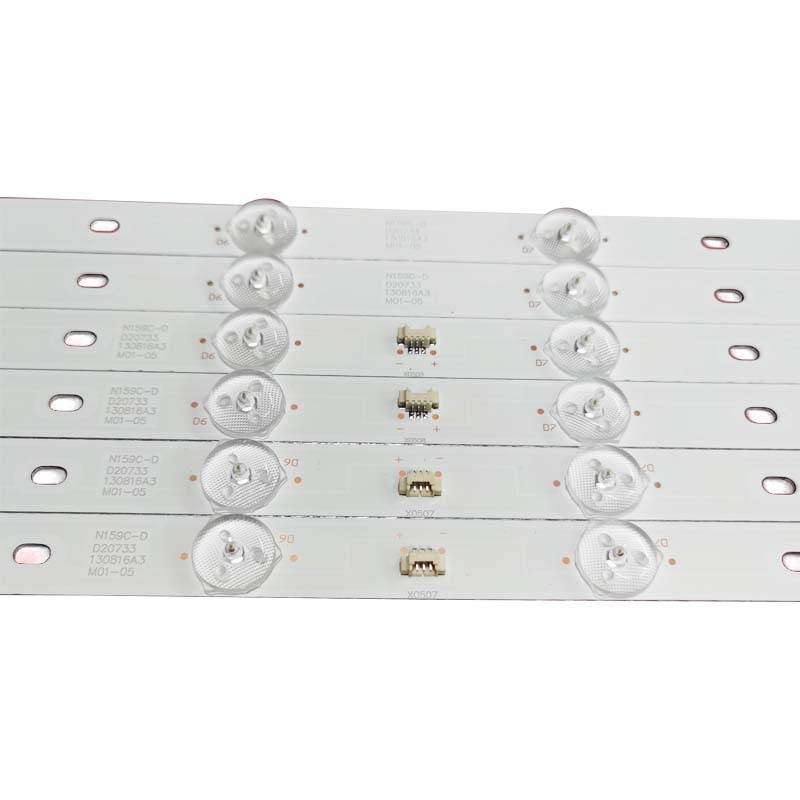

StarSharp excels in the production, development and sales of television backlight strip. LED55D16-ZC14-01/02/03/04/05(B) For Haier 55-inch Series. The LED TV backlight strip is a key component in the LCD TV display system, with 8 LED chips arranged on an aluminum substrate. It is specifically designed for Haier 55-inch TVs. It ensures uniform light and high brightness. This backlight has a standardized interface, ensuring perfect compatibility with the TV’s original circuit, plug and play directly.
LED TV backlight strips Parameters：

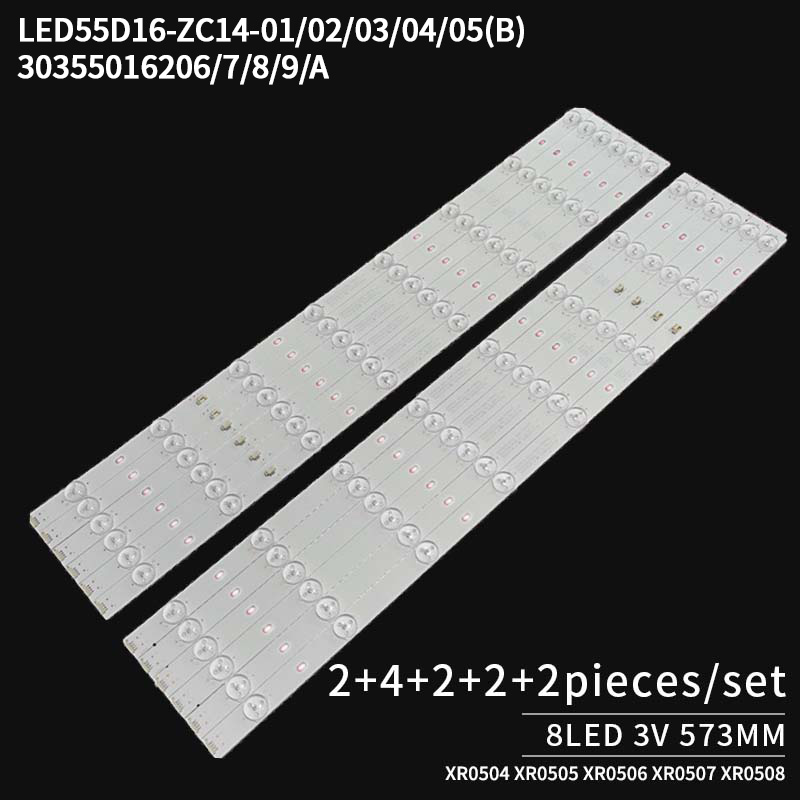

| Model Number | LED55D16-ZC14-01(B), LED55D16-ZC14-02(B), LED55D16-ZC14-03(B), LED55D16-ZC14-04(B), LED55D16-ZC14-05(B) |
| TV Models | Haier 55-inch Series |
| Length | 573mm |
| Bulbs | 8LED |
| Voltage | 3V |
| Full set | 2+4+2+2+2 pcs/set |
| Material | Aluminum |
| Code | XR0504, XR0505, XR0506, XR0507, XR0508 |
LED TV backlight strips Features:
Precisely Compatible with Haier 55-Inch Models
Designed specifically for Haier 55-inch televisions, the LED55D16-ZC14-01(B) to 05(B) backlight models match the original hardware, circuitry, and dimensions with perfect accuracy. Each set includes 12 strips in a 2+4+2+2+2 configuration, fully covering the backlight area of a 55-inch panel. After installation, brightness and color uniformity are restored to factory standards with no additional adjustments required.
High-Brightness Imported LEDs
Built with imported high-quality LED chips featuring strong adhesion, high brightness, and flicker-free performance. Each LED delivers stable illumination and accurate color reproduction, enhancing overall visual comfort. Compared with standard LEDs, these chips offer better brightness uniformity and longer lifespan, ensuring sharp, vivid picture quality and a more immersive viewing experience.
Aluminum Heat Dissipation Structure
Constructed with widened and thickened aluminum substrates for superior heat dissipation efficiency. Heat generated during LED operation is rapidly dispersed, preventing thermal decay or performance reduction. With a lifespan of over 8 years, the strips maintain stable brightness and color even under long periods of high-intensity use, making them suitable for both home entertainment and commercial display environments.
Plug-and-Play Design
The connectors match Haier’s original factory design for true plug-and-play installation. No technical skills or complex wiring are needed, allowing users to replace the strips easily on their own. The standardized connectors ensure secure contact with the TV’s driver circuitry, eliminating poor-connection issues and greatly simplifying the replacement process while reducing repair time and cost.
Complete 12-Strip Configuration
Each set includes 12 LED strips (configured as 2, 4, 2, 2, 2). Each strip measures 573 mm and contains 8 LEDs rated at 3V. This full-coverage configuration meets the complete backlighting needs of a Haier 55-inch TV, delivering uniform illumination across the entire screen—from edges to center—with brightness and color consistency that meets the original Haier display standards.
LED TV backlight strips Application :
LED TV Backlight strips FAQ：
Q: If I'm unsure about the size and specifications of my TV's backlight strip, what information should I gather? A: Try to find the model number of your TV. This can usually be found on the back of the TV or in the TV's system settings. Additionally, note any visible markings or labels on the existing backlight strip, such as voltage ratings or part numbers. With this information, we can accurately recommend the right backlight strip for you.
Q: Are there any specific safety precautions I should take when replacing the backlight strip? A: Absolutely. First, always unplug the TV from the power source to avoid the risk of electric shock. When handling the backlight strip, be careful not to touch the LEDs directly as the oils from your fingers can damage them. Also, ensure you work in a clean and static - free environment to prevent any electrostatic discharge that could harm the strip.
Q: Can I use a backlight strip from a different brand than my TV? A: In some cases, it might be possible, but it's crucial to ensure compatibility. Check the electrical specifications like voltage, current, and connector type. Also, the physical dimensions of the strip should fit the space in your TV. Even if the strip is from a different brand, as long as these factors match, it may work. However, we recommend using a strip recommended by us for your specific TV model to ensure optimal performance.
Q: What if I only need to replace one section of the backlight strip instead of the whole thing? A: Some backlight strips are designed to be section - replaceable. If this is the case, identify the damaged section and carefully disconnect it from the rest of the strip. Then, find a replacement section with the same size and specifications. If you're not sure how to do this or if your strip isn't section - replaceable, it's best to consider replacing the entire strip or consult our customer service for guidance.
Q: How does the usage pattern affect the lifespan of the backlight strip? A: Frequent on - off cycling can put additional stress on the backlight strip and potentially reduce its lifespan. Continuous long - term use at high brightness levels can also cause the strip to degrade faster. To extend the lifespan, try to limit rapid on - off cycles and adjust the brightness to a moderate level when possible.
Q: Do you offer any training materials or videos to help with backlight strip installation? A: Yes, we have a library of resources on our website. You can find step - by - step installation guides, as well as video tutorials that show the installation process in detail. These materials cover different TV models and backlight strip types. If you still have questions after reviewing these resources, don't hesitate to contact our customer service for further assistance.
