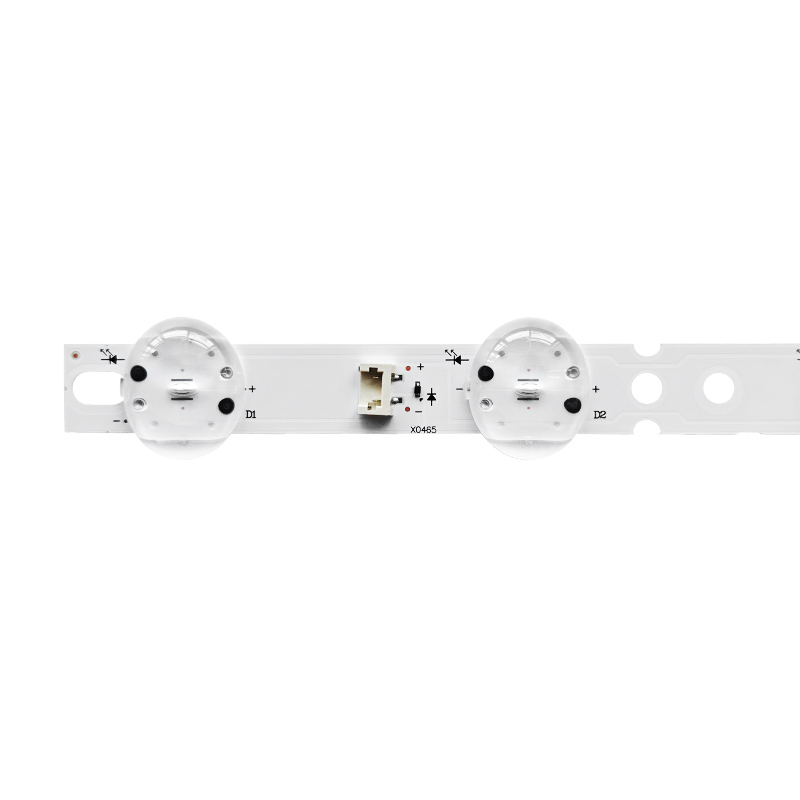

TV Backlight bar Ligit_Trident_55Uk63 SSC_Y19_Tnident_55UM73&75_REV01_180703
- Product Information
StarSharp excels in the production, development and marketing of television backlight strip. Ligit_Trident_55Uk63 For Samsung 55-inch Series. The LED TV backlight strip is a key component in the LCD TV display system, with 8 imported CSP LED chips on an aluminum substrate. It is specifically designed for Samsung 55-inch TVs including 55UM73, 55UM75, 55UK63. It ensures uniform light and high brightness. This backlight has a standardized interface, ensuring perfect compatibility with the TV’s original circuit, plug and play directly.
LED TV backlight strips Parameters：
| Model Number | Ligit_Trident_55Uk63, SSC_Y19_Tnident_55UM73&75_REV01_180703 |
| TV Models | Samsung 55-inch Series |
| Length | 600mm |
| Bulbs | 8LED |
| Voltage | 6V |
| Full set | 4pcs/set |
| Material | Aluminum |
| Code | XR0465 |
LED TV backlight strips Features:
Product Description
This backlight stript seis designed for Samsung 55-inch models such as 55UM73, 55UM75, and 55UK63. Models Ligit_Trident_55Uk63 and SSC_Y19_Tnident_55UM73&75_REV01_180703 match the original dimensions, circuits, and connectors, making them a direct replacement.
LED Specification

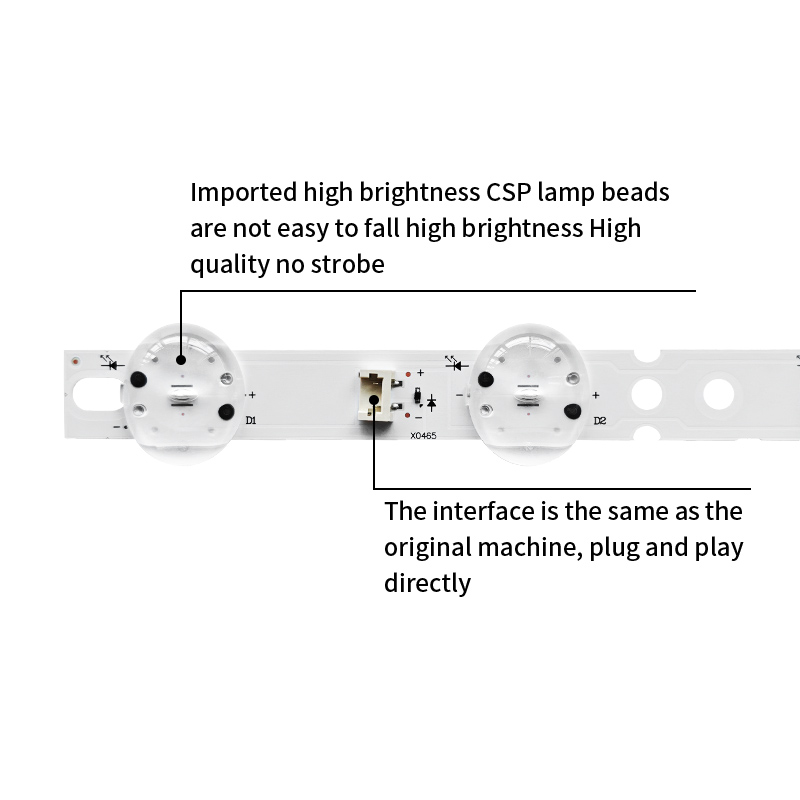

Uses CSP LEDs with stable brightness, no flicker, strong bonding, good uniformity, and long service life.
Heat Dissipation

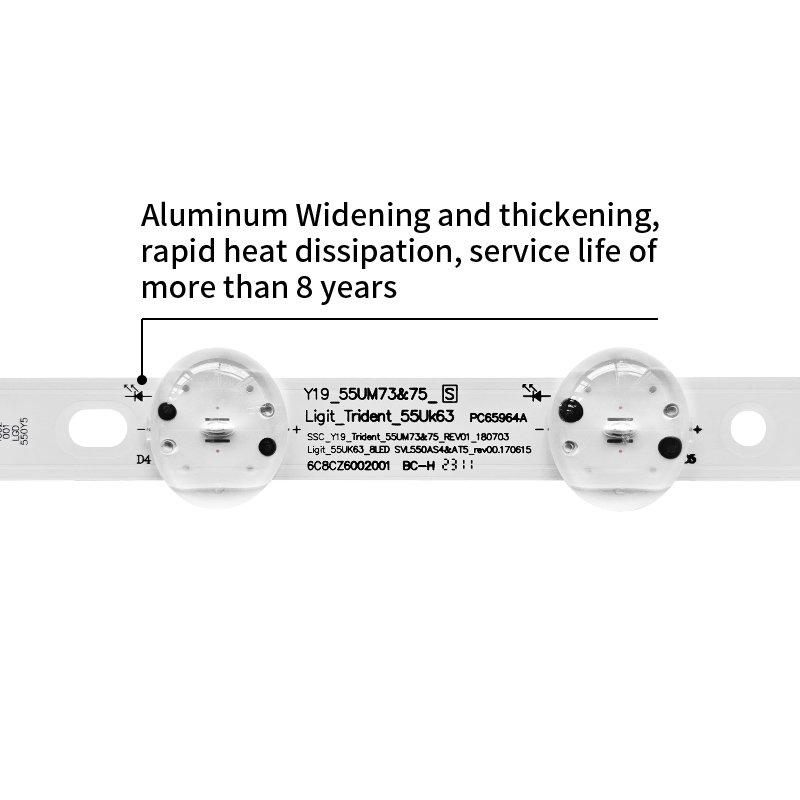

Built with a thick aluminum substrate for efficient heat dissipation. It maintains stable brightness during long-term operation and extends the lifespan of the LED strips.
Installation
Connector layout is identical to the original Samsung parts. Remove the old strips and install the new ones directly. No rewiring or adjustments required.
Package Contents

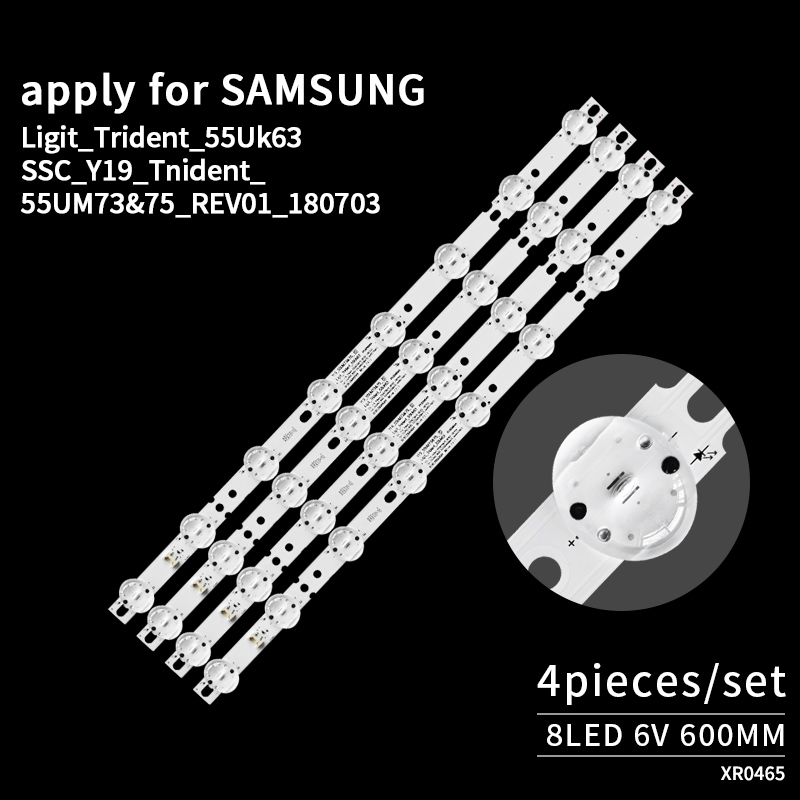

Includes 4 pieces of 600mm strips, each with 8 LEDs (6V). Provides full backlight coverage for 55-inch Samsung panels with consistent brightness across the screen.
LED TV backlight strips Application :
LED TV Backlight strips FAQ：
Q: If I'm unsure about the size and specifications of my TV's backlight strip, what information should I gather? A: Try to find the model number of your TV. This can usually be found on the back of the TV or in the TV's system settings. Additionally, note any visible markings or labels on the existing backlight strip, such as voltage ratings or part numbers. With this information, we can accurately recommend the right backlight strip for you.
Q: Are there any specific safety precautions I should take when replacing the backlight strip? A: Absolutely. First, always unplug the TV from the power source to avoid the risk of electric shock. When handling the backlight strip, be careful not to touch the LEDs directly as the oils from your fingers can damage them. Also, ensure you work in a clean and static - free environment to prevent any electrostatic discharge that could harm the strip.
Q: Can I use a backlight strip from a different brand than my TV? A: In some cases, it might be possible, but it's crucial to ensure compatibility. Check the electrical specifications like voltage, current, and connector type. Also, the physical dimensions of the strip should fit the space in your TV. Even if the strip is from a different brand, as long as these factors match, it may work. However, we recommend using a strip recommended by us for your specific TV model to ensure optimal performance.
Q: What if I only need to replace one section of the backlight strip instead of the whole thing? A: Some backlight strips are designed to be section - replaceable. If this is the case, identify the damaged section and carefully disconnect it from the rest of the strip. Then, find a replacement section with the same size and specifications. If you're not sure how to do this or if your strip isn't section - replaceable, it's best to consider replacing the entire strip or consult our customer service for guidance.
Q: How does the usage pattern affect the lifespan of the backlight strip? A: Frequent on - off cycling can put additional stress on the backlight strip and potentially reduce its lifespan. Continuous long - term use at high brightness levels can also cause the strip to degrade faster. To extend the lifespan, try to limit rapid on - off cycles and adjust the brightness to a moderate level when possible.
Q: Do you offer any training materials or videos to help with backlight strip installation? A: Yes, we have a library of resources on our website. You can find step - by - step installation guides, as well as video tutorials that show the installation process in detail. These materials cover different TV models and backlight strip types. If you still have questions after reviewing these resources, don't hesitate to contact our customer service for further assistance.
